Hubei Jiaheng Technology Co., Ltd.
Hubei Best Crane Co., Ltd
(Truck Crane Professional Exporter)
Web: hbjh2013.en.made-in-china.com
Our advantages:
Part 1-----PRODUCT DETAILS
1).Pictures show:
2).Technical information:
Part 2-----OUR FACTORY
HUBEI BEST CRANE CO.,Ltd is located in the central of Hubei Province in China.We are a professional truck
mounted crane manufacture, mainly engaged in researching, developing andmanufacturing truck mounted cranes
from 1 ton to 200 tons.
The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known
as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products
include a variety of special hydraulic cylinder.
After 19 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital
of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation
with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.
Our company have more than 800 units equipment for mass production.
We can product around 220 thround units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce customized products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
Hubei Jiaheng Technology Co., Ltd.
Hubei Best Crane Co., Ltd
(Truck Crane Professional Exporter)
Web: hbjh2013.en.made-in-china.com
Hubei Best Crane Co., Ltd
(Truck Crane Professional Exporter)
Web: hbjh2013.en.made-in-china.com
Our advantages:
1).Use HG785 international standard high-strength steel to reduce the weight of crane.
2).The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3).Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts
to ensure the micro-mobility,security and stability.
4).Parker brand oil seal and gasket for hydraulic pump.
5).Brand scanreco remote control operate from Sweden.
6).Our factory is SGS certificated.
Part 1-----PRODUCT DETAILS

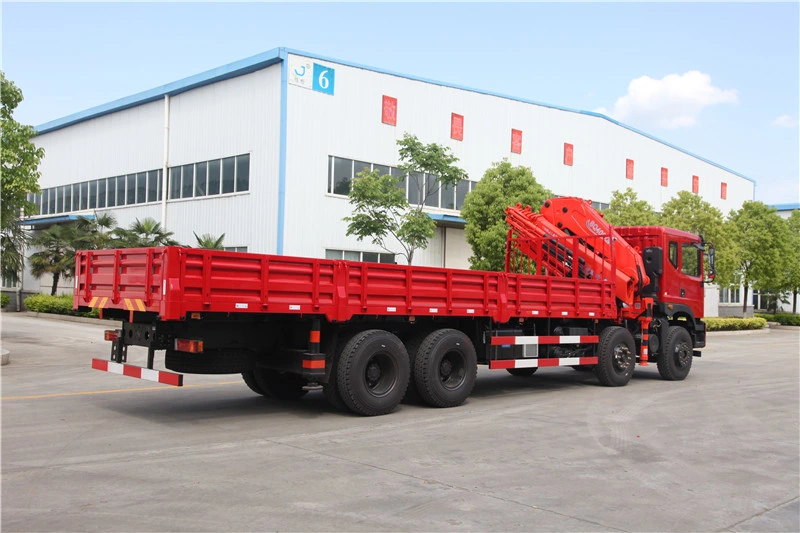

1).Pictures show:
2).Technical information:
| Model # | SQ400ZB5 /knuckle crane 20ton at 2m |
| Max Liftingmoment | 400Kn.m |
| Max Lifting Capacity | 13000kg/ 3.0m |
| 8200kg/ 4.5m | |
| 3200kg/ 9.75m | |
| 2000kg/ 13.5m | |
| Max Lifting Height | 15.7m |
| Max Working Radius | 13.5m |
| Boom Section | 5 stages |
| Rotation Angle | 360°All Rotaion |
| Rated Working Pressure | 28mpa |
| Oiltank Capacity | 200L |
| Related Oil Flow | 64 L/min |
| Outrigger Span | 2330-7100mm |
| Outrigger | 4 ,adjustable, Hydraulic operating. |
| Crane Weight | 5600kg |
| Installation Space | 1530mm |
| Swingtype | Planetary gear reduction |
| Safety Device | Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device. |
| Options | Aux.winch,Aux.Boom,Remote control |
| Material | HG785 |
| Truck for reference | ||
| Truck brand | Dongfeng (other truck brand can be customized) | |
| Cabin | Driving type: 8X4, Left hand drive (Right hand drive type can be customized) | |
| Color is optional | ||
| Vehicle Main Dimensions | Overall size (L x W x H) | 11950X2500X3800 mm |
| Wheel base | 1800+4600+1350 mm | |
| Cargo Body | 6800X2350X500 mm | |
| Weight in KGS | GVW | 31000 kg |
| Tare weight | 14500 kg | |
| Front axle loading capacity | 2 X 7000 kg | |
| Rear axles loading capacity | 2 X 16000 kg | |
| Engine | Type | Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power | 371HP (273kw) | |
| Max Torque | 1500N. M | |
| Emission standard | Euro II | |
| Max Speed | 102 km/h | |
| Gearbox | Manual gearbox with 10 forwards & 2 reverses, with PTO | |
| Tire | 12R22.5 tubeless tire, 13 pieces including one spare tire | |
Part 2-----OUR FACTORY
HUBEI BEST CRANE CO.,Ltd is located in the central of Hubei Province in China.We are a professional truck
mounted crane manufacture, mainly engaged in researching, developing andmanufacturing truck mounted cranes
from 1 ton to 200 tons.
The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known
as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products
include a variety of special hydraulic cylinder.
After 19 years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital
of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation
with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.
Our company have more than 800 units equipment for mass production.
We can product around 220 thround units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce customized products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.
